Description
Specifications

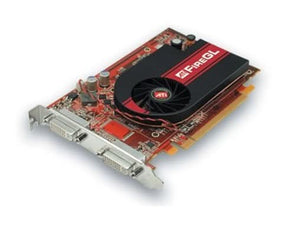

Model Number: 100-50515
Brand: ATI Technology
Alt. Part Number(s): 100-505156 / 109-A67131-20/V5200
Product Type: Video Graphic Adapter
Technical Description
Brand: ATI Technology
Model: 100-50515 / 100-505156 / 109-A67131-20/V5200
Interface: PCI Express x16
Chipset Manufacturer: ATI
GPU: FireGL V5200
PixelPipelines: 12
Memory Size: 256MB
Memory Interface: 128-bit
Memory Type: GDDR3
DirectX: DirectX 9
OpenGL: OpenGL 2.0
DVI Ports: 2
TV-Out: HDTV via adapter
Analog Resolution: 3840 x 2400
Cooler: With Fan
Operating Systems Supported: Windows XP, Windows XP64 and Windows 2000, Linux 32 and Linux 64, Windows Vista Ready
System Requirements
PCI Express based workstation with available x16 lane graphics slot
Connection to the system power supply (adapter included)
350-Watt power supply or greater (assumes fully loaded system)
512MB of system memory
Installation software requires CD-ROM drive
Features
Powered by ATI's next generation FireGL graphics processor unit (GPU) with Avivo Technology
Scalable ultra-threaded architecture with 5 Parallel Geometry Engines and 12 Pixel Shader Processors
Full Shader Model 3.0 support for vertex and pixel shaders
256MB GDDR3 graphics memory with 256-bit ring bus memory controller
High Dynamic Range (HDR) rendering with 8-bit, 10-bit, and 16-bit per RGB color component support
High fidelity display engine capable of producing over one trillion colors
Two Dual link outputs each capable of ultra-high resolutions up to 3840 x 2400
HD Component Video (YPrPb) output
Optimized and certified for CAD and DCC applications
Direct access to ATI's dedicated workstation technical support team
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
