Description
Specifications

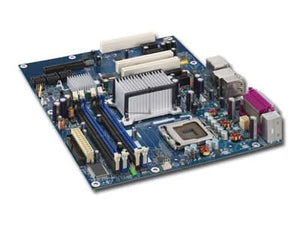

Model Number: DG965WHMKR
Brand: Intel
Alt. Part Number(s): DG965WHMKR
Product Type: Motherboard
Note: Refurbished Motherboard with Backplate Only.
Technical Description
Brand: Intel
Model: DG965WHMKR
CPU Socket Type: LGA 775
CPU Type: Core 2 Duo / Pentium D / Celeron D
FSB: 1066/800MHz
Supported CPU Technologies: Hyper-Threading Technology
Chipset: Intel G965 Express, Intel ICH8R
Number of Memory Slots: 4×240pin
Memory Standard: DDR2 800
Maximum Memory Supported: 8GB
Channel Supported: Dual Channel
PCI Express x16: 1
PCI Express x1: 3
PCI Slots: 3
PATA: 1 x ATA100 2 Dev. Max
SATA 3Gb/s: 6
SATA RAID: 0/1/0+1/5 Matrix RAID
Onboard Video Chipset: Intel GMA X3000
Audio Chipset: SigmaTel STAC9271D
Audio Channels: 8 Channels
LAN Chipset: Intel 82566DC
Max LAN Speed: 10/100/1000Mbps
PS/2 Ports: 2
LPT Ports: 1
Video Ports: D-Sub
USB 1.1/2.0: 6 x USB 2.0
IEEE 1394: 1 x IEEE 1394a
S/PDIF Out: 1 x Optical
Audio Ports: 5 Ports
Onboard USB: 4 x USB 2.0
Onboard 1394: 1 x 1394a
Form Factor: ATX
Dimensions (W x L): 11.6" x 9.6"
Windows Vista: Certified for Windows Vista
Power Pin: 24 Pin
Features
Notice: Only DDR2-800 memory supporting JEDEC approved 1.8V operation with timings of 5-5-5 or 6-6-6 is supported on Intel Desktop Boards based on Intel 965 Express Chipsets.
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
